Wrapping Machines

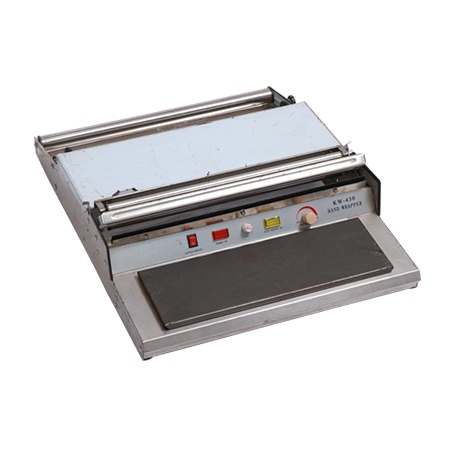

Manual Cling R M Wrapping M/C-203
| Voltage | AC 220/50 |
| Power | 300 |
| Max Seal Width mm | 420 |
| Max Tem | 160 |
| Dimension | 610x470x120 |
| Weight | 6.5 |
| Body | S Type |

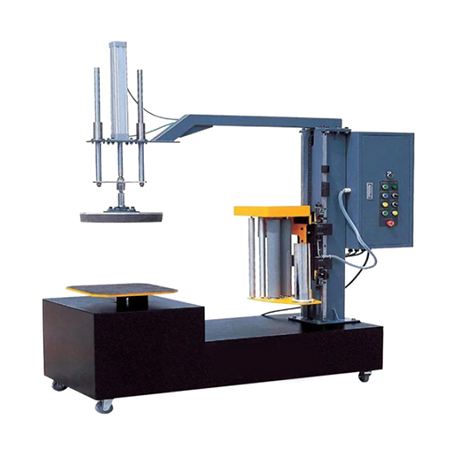

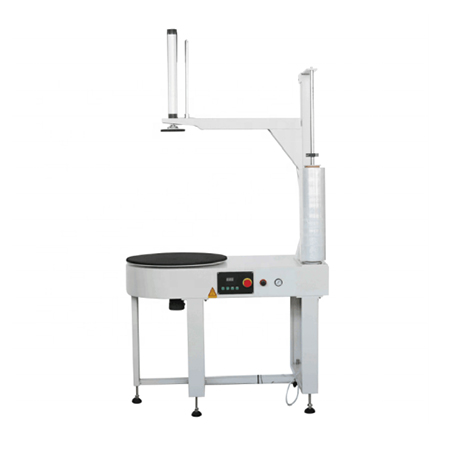

Stretch Wrapping With Top Press-211
| Automation Grade | Automatic |
| Material | Steel |
| Model Name/Number | Box Stretch Wrapping Machine |
| Voltage | 220 Volt |
| Phase | Single Phase |
| Size | 1447x762x609 MM |
| Product Weight | 100Kg |
| Frequency | 50Hz |
| Diameter Of Turntable | 600 MM |
| Wrapping Speed | 20 Turns/Min |

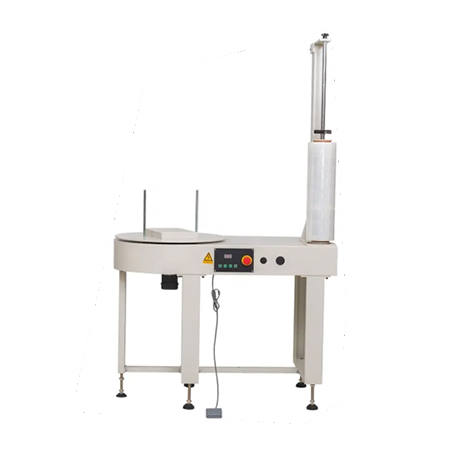

Stretch Wrapping Without Top Press-212
| Automation Grade | Automatic Without Top Press |
| Material | Steel |
| Voltage | 220 Volt |
| Phase | Single Phase |
| Size | 1447x762x609 MM |
| Product Weight | 100Kg |
| Frequency | 50Hz |
| Diameter Of Turntable | 600 MM |
| Wrapping Speed | 20 Turns/Min |

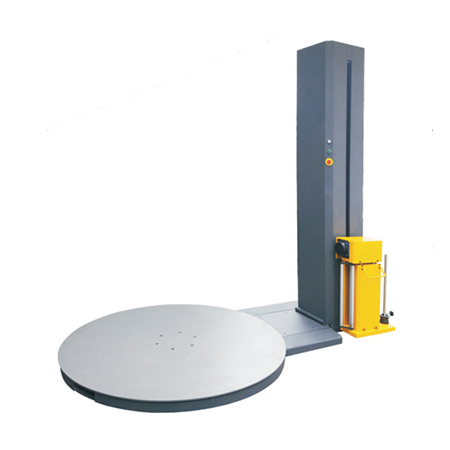

Pallet Stretch Wrapping Machine-214
| Max Wrapping Size (LxWxH) (MAX) (MM) |
(500-1200) x (500-1200) |
| Wrapping Efficiency (Loads/Hour) |
20-40 |
| Turntable Speed (Rpm/Min) | 3-12 |
| Turntable Diameter (mm) | Ø 1650/H: 85 |
| Turntable Loading (Max) (Kg) | 2000 |
| Electrical Requirement (V/Hz) | 220/50 |
| Power (KW) | Turntable:0.75 Film, Carriage:0.4; Steel Tower:0.37 |
| Film Carriage | Pre-Stretch Type |
| Control System | PLC |
| Top Plate Device | Pneumatic Direct Transmit, Orbit Top Plate |
| Machine Dimension (mm) | L TYPE:2745 x 1650 x 2700/ H TYPE: 2745 X 1650 X 3300 |
| Weight (Kg) | 800 |
Box Stretch Wrapping Machine-215
| Max Wrapping Size (LxWxH) (MAX)(MM) |
600x600x600 |
| Wrapping Efficiency (Loads/Hour) |
20-40 |
| Turntable Speed(Rpm/Min) | 3-20 |
| Turntable Diameter(mm) | H:600 |
| Turntable Loading (Max)(Kg) | 50 |
| Electrical Requirement (V/HZ) | 220/50 |
| Power (KW) | Turntable:0.75 Film, Carriage:0.4; Steel Tower:0.37 |
| Film Carriage | Pre-Stretch Type |
| Control System | PLC |
| Top Plate Device | Pneumatic Type Top Plate |
| Machine Dimension (mm) | 600x4170x1800 |
| Weight (Kg) | 260 |
